Quick Details

  • Feature: Truck Crane
  • Condition: New
  • Application: construction,workshop,transport,agriculture,industry,oil field,etc
  • Rated Loading Capacity: 10000kg
  • Rated Lifting Moment: as your requirements
  • Max. Lifting Load: 10 Ton
  • Max. Lifting Height: 31m
  • Span: as your requirements
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: LFT
  • Model Number: LFTQY new pickup truck crane 10 ton
  • Certification: ISO9001:2008
  • Warranty: 12 Months
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Item name: New Pickup Truck Crane 10 Ton With Low Price
  • Engine motor: Diesel engine and electric motor
  • Emission standard: Euro III or Euro IV emission standard
  • Boom type: Hydraulic straight arm u shape 4 section telescopic boom
  • Truck chassis: Dongfeng,Tking,BMC truck chassis or Customized
  • Rated loading capacity: 4 6 8 10 12 15 ton of rated loading capacity:
  • Market: Sell like hot cakes at home and abroad
  • Spare parts: Spare parts available
  • Price: Cheap factory price with high quality
  • Operation: Convenient to operate

Packaging & Delivery

Packaging Details Nude packing.
Delivery Time Within 7-10 days after order confirmed

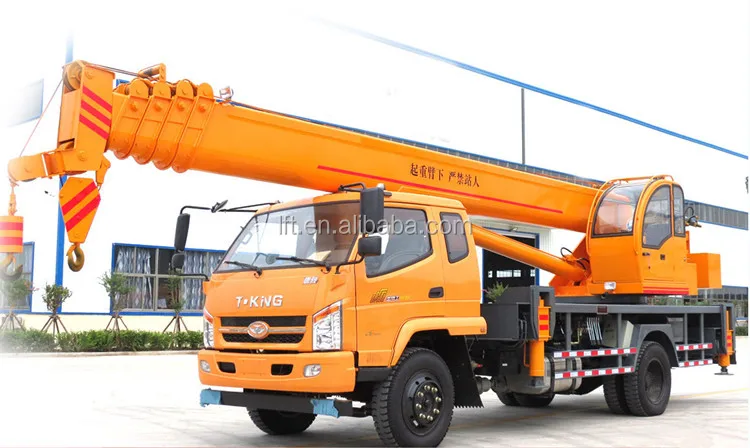

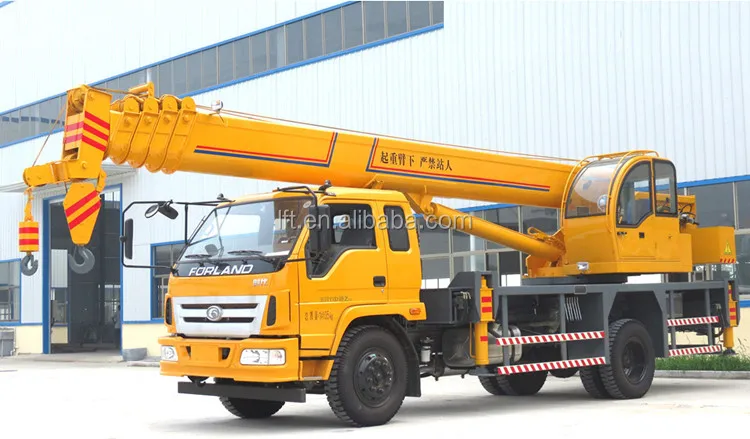

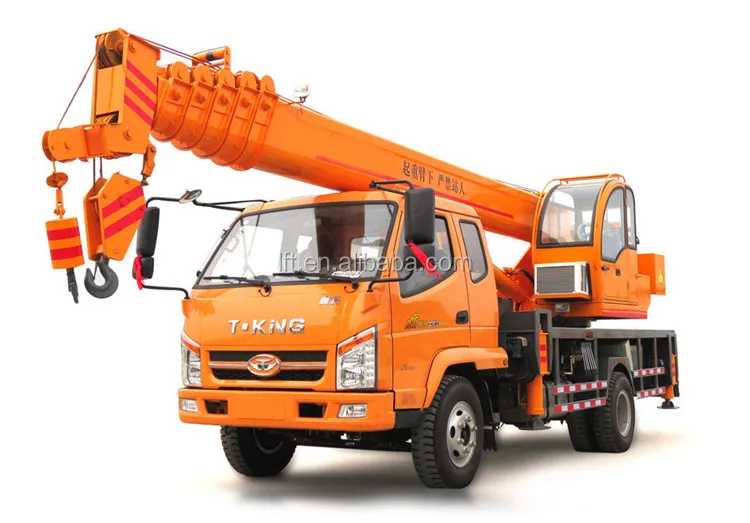

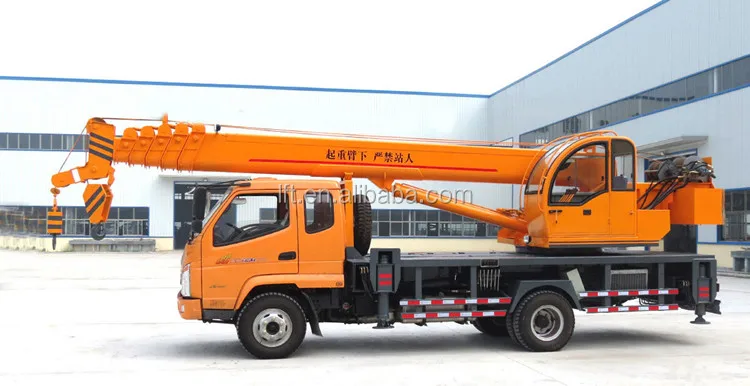

New Pickup Truck Crane 10 Ton With Low Price

Product Description
Technical Data
Product modelQY 10  truck crane
chassisTKING (  Or according your requirment )
Total mass  (kg)125000
Overall dimension           ( mm)10110*2450*3250
Rated elevating capacity  ( kg)10000
Max. Lifting Height           ( m)

31

power(kw)95
Engine model YZ4DA1-40
Tires 825-20
Outrigger system Full hydraulic automatic vertical and horizontal cylinder telescopic H outrigger

Braking form

Break air brake

Steering form

Hydraulic power steering

Crane jib structure4 or 5section octagonal arm, oil cylinder arm out
Oil cylinder 180x1.8m luffing cylinder
Gear pumpDouble pump confluence gear pump
Motor Gasoline and electric dual power
Legs 5
Boom typeStraight arm,telecopic boom,U-shape
Main Lifting Mechanism
Category two planet wheel with a brake inside
Auxiliary Lifting MechanismCategory one gear brake motor
Swing Bearing Ø1.4 meter internal gear turntable made of 50 manganese steel
Vertical hydraulic legDouble-acting engineering oil cylinder
Horizontal hydraulic leg Double-acting engineering oil cylinder
Platform Anti-skidding and big
Protective Screening Two-way
Night light
3 lamps control
Crane CabCompeletely digital design, luxury driving cab
The central axially symmetrical
Four oil ways
Crane Start
Tailor-made
ThrottleHydraulic
Pressure gage and switchShockproof component
Power takeoffDriving indoor operation
Hydraulic Oil Tank
Turntable rearmountedcounter weight combined typespecial four-layer filters
Max .gradeability 40%
Max.travel speed(km/h)75
Ration angle360°
Arm elevation 90°


Service
1. All the machines will be full tested before shipment; All products have one year warranty and lifetime maintenance serive (collect maintenance after one year)
2. 24 Hours technical support, email, telephone or video online
3. User-friendly english manual for machine using and maintaining
4.Several sets wearing parts will be free for you.
Certifications

Trade Information

1.Trade Terms:FOB,CIF,EXW
2.Payment Terms:T/T,L/C,Western Union,Paypal,Escrow,Moneygram
3.Payment Condition: 30% deposit in advance,70% balance before delivery.
4.Delivery Time: 7-12 working days after deposit.
5.Packing: Nude or as customer's requirments,by container or frame
6.Shipping: By Sea,By Railway,By Highway.

Company Information

Xinxiang City Lift Machinery Equipment CO.,Ltd who was established since 1981.We are professional in manufacturing hydraulic lift machinery for more than 30 years. We have two big factories in Henan province with excellent engineers and designers for your orders.



Welcome to contact us to learm more details :
